Understanding ASME Code-Stamped Pressure Vessels
What Is an ASME Code-Stamped Pressure Vessel?
Pressure vessels are enclosed containers designed to hold gases or liquids at a pressure substantially different from ambient pressure. These workhorses of industry come in various shapes and sizes—from massive storage tanks to small processing units—and are fundamental to operations in countless industries.
The American Society of Mechanical Engineers (ASME) Boiler and Pressure Vessel Code represents the gold standard in pressure vessel safety and design. Established in 1914 following several catastrophic boiler explosions, the ASME Code has evolved into a comprehensive set of guidelines covering design, fabrication, inspection, testing, and certification of pressure equipment.
An ASME stamp on a pressure vessel isn’t just a logo—it’s a certification mark indicating that the vessel meets rigorous safety standards. This stamp signifies that the vessel was designed, fabricated, inspected, and tested according to ASME’s exacting requirements. For facility managers and safety officers, this stamp provides peace of mind that the equipment won’t fail under normal operating conditions.
Different ASME stamps indicate different types of certification:
- U Stamp: The most common, indicating compliance with Section VIII, Division 1 of the ASME Code for pressure vessels
- U2 Stamp: For vessels built to Section VIII, Division 2, offering alternative rules with more rigorous engineering and higher allowable stresses
- U3 Stamp: For vessels built to Section VIII, Division 3, designed for even higher pressures
- UM Stamp: For miniature pressure vessels
- R Stamp: For repair organizations performing repairs on pressure vessels
- S Stamp: For power boilers
Each stamp represents specific requirements and applications, ensuring the right standards are applied to each vessel type.
The ASME Certification Process
Obtaining ASME certification is neither quick nor simple, and that’s by design. The rigorous process ensures that only qualified manufacturers with proper quality control systems can produce these critical components.
The certification journey typically begins with implementing a comprehensive Quality Control System that meets ASME standards. This system must document every aspect of the manufacturing process, from material procurement to final testing.
Documentation requirements are extensive. Manufacturers must maintain detailed records, including design calculations, material certificates, welding procedures, and test results. This documentation trail provides traceability throughout the vessel’s life cycle.
Material selection and testing form a crucial part of the process. Only approved materials listed in the ASME Code can be used, and each batch must come with material test reports verifying chemical composition and mechanical properties. Proper material identification and tracking throughout the manufacturing process is essential.
During manufacturing, inspections occur at various stages. An Authorized Inspection Agency (AIA) provides a third-party inspector who verifies compliance at critical points. These inspections ensure that the manufacturer follows approved procedures and that the vessel meets all code requirements.
The final steps include hydrostatic or pneumatic pressure testing, typically at 1.3 to 1.5 times the design pressure. Only after successful testing and final inspection can the ASME stamp be applied to the nameplate, officially certifying the vessel.
Benefits of ASME Code Compliance
ASME certification offers numerous advantages beyond mere regulatory compliance:
- Safety is paramount—ASME Code compliance dramatically reduces the risk of catastrophic failures that could result in injury, death, or environmental damage. The stringent design and testing requirements create significant safety margins.
- ASME certification enjoys international recognition. Even in countries with their own pressure vessel codes, ASME certification is often accepted or preferred due to its rigorous standards. This makes ASME-stamped vessels more marketable globally.
- From an insurance perspective, using ASME-certified pressure vessels may lower premiums and simplify claims processes. Many insurance providers require ASME compliance to cover pressure equipment.
- Properly designed and fabricated vessels also offer superior longevity and reliability. The comprehensive quality control requirements result in equipment that typically outperforms non-code vessels regarding operational lifespan and maintenance needs.
- Most importantly, ASME compliance typically satisfies legal requirements across jurisdictions. Most states and municipalities in the US and many international locations require ASME certification for pressure vessels, making compliance non-negotiable for legal operation.

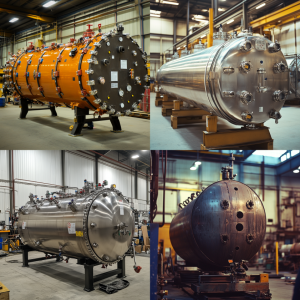

Industries Relying on ASME Pressure Vessels
ASME Code-stamped pressure vessels are workhorses across numerous industries:
- In oil and gas, these vessels handle everything from separating crude components to storing compressed natural gas. The hazardous nature of these materials makes code compliance especially critical.
- Chemical processing relies heavily on reaction vessels, storage tanks, and columns that must withstand aggressive chemicals and varying pressures—all applications where ASME certification is essential.
- The pharmaceutical industry depends on ultra-clean pressure vessels to produce medications. Here, ASME compliance works alongside other regulations like FDA requirements to ensure both safety and product purity.
- Power generation facilities use ASME vessels throughout their systems, from boilers to heat exchangers. These vessels often operate at extreme temperatures and pressures, highlighting the importance of proper certification.
- Even food and beverage producers rely on ASME vessels for processes like pasteurization, fermentation, and carbonation. The certification helps ensure both worker safety and food safety.
- Water and wastewater treatment systems use pressure vessels for filtration, storage, and chemical processing. As these systems protect public health, proper certification is non-negotiable.
The Enduring Value of ASME Certification:
ASME Code Stamped pressure vessels represent a critical intersection of engineering excellence, regulatory compliance, and workplace safety. By adhering to these internationally recognized standards, industries protect their workers, communities, and investments. As pressure vessel technologies evolve, the ASME Code continues to adapt, ensuring that safety remains paramount across all applications. For facility managers and engineers, understanding these standards isn’t just about compliance—it’s about commitment to operational integrity and responsible industrial practice.
Need a reliable partner?
Frequently Asked Questions
1. What does the ASME stamp on a pressure vessel indicate?
An ASME stamp certifies that the pressure vessel was designed, fabricated, inspected, and tested according to the ASME Boiler and Pressure Vessel Code. It confirms the vessel meets rigorous safety standards and was manufactured by a company with a certified quality control system under the supervision of authorized inspectors.
2. How often do ASME Code-stamped pressure vessels need inspection?
Inspection intervals vary based on vessel type, application, and local regulations. Generally, pressure vessels require internal inspection every 3-5 years and external inspection annually. However, some jurisdictions may require more frequent inspections, and vessels in severe service may need more regular examination. Always consult local regulations and insurance requirements.
3. Can pressure vessels operate without ASME certification?
In most U.S. jurisdictions and many international locations, pressure vessels must be ASME certified for legal operation. Limited exceptions exist for small vessels, very low pressures, or certain specialized applications. Operating non-certified vessels typically violates local laws and insurance requirements, potentially resulting in fines, insurance claim denials, or liability issues.
4. What's the difference between U, U2, and R stamps?
The U stamp certifies vessels built to Section VIII, Division 1 of the ASME Code—the most common standard. The U2 stamp indicates compliance with Division 2, which allows higher pressures through more rigorous analysis. The R stamp is different—it’s for companies authorized to repair or alter existing pressure vessels, not for manufacturing new ones.
5. How long does the ASME certification process take?
For manufacturers seeking ASME certification, the process typically takes 6-12 months from initial application to final certification. This includes developing quality control systems, preparing documentation, and passing rigorous audits. For individual pressure vessels manufactured by already-certified companies, the certification process is incorporated into the manufacturing timeline.
6. What materials are typically used in ASME Code pressure vessels?
Common materials include carbon steel (SA-516 Gr. 70), stainless steels (304/304L, 316/316L), nickel alloys (Inconel, Monel), aluminum alloys, and specialized alloys for extreme conditions. Material selection depends on operating conditions, contained substances, and design requirements. All materials must be ASME-approved with certified material test reports.
7. How do I verify if a pressure vessel has proper ASME certification?
Authentic ASME-certified vessels have a nameplate with the ASME stamp, National Board number, manufacturer’s name, maximum allowable working pressure, minimum/maximum design temperatures, and manufacturing date. Ask for the Manufacturer’s Data Report (Form U-1 or U-2), which documents compliance. You can verify the manufacturer’s certification status through the ASME website or check vessel registration with the National Board of Boiler and Pressure Vessel Inspectors.
Key Takeaways
- ASME Code-stamped pressure vessels represent the highest safety standards in the industry, backed by over a century of engineering expertise.
- The certification process involves comprehensive quality control systems and detailed documentation throughout design and manufacturing.
- Compliance isn’t simply a good practice—it’s essential for safety, legal operation, and insurance coverage in most jurisdictions.
- Working with certified manufacturers ensures your equipment will meet regulatory requirements and perform reliably.
- Even after installation, regular inspection and maintenance are necessary to maintain compliance and ensure continued safe operation.
