How do you classify a pressure vessel?
A pressure vessel is a container designed to hold gases or liquids at a pressure significantly different from ambient pressure. At Red River, we understand these vessels inside and out because we manufacture them for a wide range of industries, from OIL AND GAS to BIOGAS. Our commitment to American values—like a firm handshake and unwavering work ethic—ensures that every pressure vessel we produce represents quality and reliability.
Importance of Proper Classification
Correctly classifying a pressure vessel goes beyond meeting industry standards; it ensures safety, efficiency, and longevity. Understanding the different types of pressure vessels and their classifications is crucial. Whether it involves the vessel’s design, material, or intended use, proper classification keeps operations safe and efficient.
At Red River, safety isn’t just a buzzword—it defines how we work. We manufacture every vessel to meet or exceed the required standards. Our dedication to safety earns the trust of clients ranging from international corporations to startups. They choose us for their most valuable projects because we prioritize safety and quality above all else.
Role of Pressure Vessels in Industries
Pressure vessels play a pivotal role across multiple industries. In the OIL AND GAS sector, they support refining and processing. In POWER GENERATION, they enable energy production. Their importance cannot be overstated. In the MINERALS/ELEMENTS and BIOGAS fields, these vessels play a critical role in extraction and processing.
At Red River, we take pride in our adaptability and ability to serve industries with unique requirements. Our personalized approach ensures that every client feels valued and understood. We embrace challenges, demonstrate accountability, and execute relentlessly. When you partner with Red River, you’re not just another customer in line—you’re a priority.
Key Factors in Pressure Vessel Classification
Material Composition
The material used in a pressure vessel determines its durability, resistance, and safety during operation. Common materials include carbon steel, stainless steel, and alloy metals, each offering unique properties suited for specific applications.
- Carbon steel remains a top choice for general pressure applications due to its strength and cost-effectiveness.
- Stainless steel provides superior corrosion resistance, making it ideal for vessels operating in chemical plants or food processing industries.
- Alloy materials—containing nickel, chromium, and molybdenum—enhance durability under high temperatures or pressures, making them essential for extreme conditions.
Selecting the right material extends the vessel’s lifespan and maximizes operational efficiency.
Design Pressure and Temperature
The design pressure and temperature of a vessel define the maximum limits it can withstand during operation. These factors dictate the safety margins necessary to handle fluctuations in the operating environment.
- Oil and gas vessels must endure extreme pressure and temperature conditions, requiring precise engineering to prevent failure.
- Material selection plays a critical role in ensuring strength and integrity under these conditions.
- The vessel’s ability to maintain safe operation depends on how well its design accommodates external and internal pressure variations.
Size and Volume Considerations
The size and volume of a pressure vessel influence its classification and intended applications.
- Large-volume vessels require thicker walls and a wider diameter to maintain stability when storing or processing significant amounts of gases or liquids.
- High-pressure but low-volume applications require a compact design with stronger materials to withstand the stress of elevated pressure.
The vessel’s dimensions also impact installation and placement in industrial settings. Larger vessels often require reinforced foundations or additional structural support.
Types of Pressure Vessels and Their Categorization
Storage Vessels
Storage vessels primarily store liquids or gases under pressure and serve as a backbone in industries like oil, gas, and petrochemicals. These vessels ensure substances remain safely contained for extended periods, preventing leaks or contamination.
Storage vessels commonly appear in refineries, natural gas processing facilities, and water treatment plants, holding water, oil, or chemicals until needed for further processing. Vertical and horizontal storage vessels provide flexibility based on space constraints and storage needs.
Heat Exchangers
Heat exchangers regulate temperature by allowing heat transfer between two or more fluids. These vessels play a vital role in power generation, optimizing efficiency by managing thermal energy between systems.
Heat exchangers come in various designs, including shell-and-tube, plate, and air-cooled models. Each design suits specific operational requirements. These vessels must handle pressure while maintaining thermal performance, making material selection and design critical.
Process Vessels
Process vessels support operations such as mixing, separating, or processing fluids. Industries like chemical, pharmaceutical, and food processing rely on these vessels to control chemical reactions, filtration, and separation under specific pressure and temperature conditions.
- Reactors facilitate chemical reactions in a controlled environment.
- Separators divide liquid and gas phases during processing.
- Many process vessels feature agitators, filters, or other components to optimize operations based on industrial needs.
Pressure Vessel Categorization Standards
ASME Standards and Codes
The American Society of Mechanical Engineers (ASME) provides comprehensive guidelines to ensure the safety, reliability, and performance of pressure vessels in the U.S. ASME codes set strict requirements regarding material, design, fabrication, inspection, and testing to meet industry standards. These guidelines are essential in various industries, from petrochemical to energy, to ensure vessels can withstand high-pressure conditions safely.
European Pressure Equipment Directive (PED)
In Europe, the Pressure Equipment Directive (PED) governs the design and manufacturing of pressure vessels. This regulation ensures that equipment used across EU member states meets stringent safety criteria and operational reliability. The PED covers everything from the classification and conformity assessment to the documentation needed for compliance.
Other International Standards
Across the globe, international standards such as ISO help regulate the manufacturing and safety of pressure vessels. These standards provide universal safety and quality benchmarks that industries across various regions must adhere to. Whether it’s pressure vessels used in the chemical industry or heavy machinery, these standards are integral to maintaining operational safety on a global scale.
Criteria for Classifying Pressure Containers
Wall Thickness and Stress Analysis
The thickness of a pressure vessel’s walls is crucial in determining its ability to withstand internal and external pressure. Stress analysis ensures that vessels are designed to handle specific operational demands, especially under high pressure. Proper wall thickness is vital for preventing rupture or failure during operations, ensuring the long-term durability of the vessel.
Vessel Purpose and Functionality
The intended use of a pressure vessel, such as for storage, heating, or processing, influences its design and classification. Vessels must be designed with specific functionalities in mind to ensure their effectiveness, whether storing gases, managing liquids under pressure, or facilitating chemical reactions.
Operational Environment and Conditions
The environmental factors a vessel is subjected to play a significant role in its classification. For instance, vessels operating in extreme temperatures or corrosive environments need materials and designs that account for these conditions. Operational environment factors ensure the vessel performs optimally without premature wear or failure.
Safety Considerations in Pressure Vessel Classification
Hazard Analysis
Before any pressure vessel can be classified or put into operation, a thorough hazard analysis is essential. This process identifies all potential risks that could be associated with the vessel’s operation, including over-pressurization, material failure, and environmental hazards. The analysis ensures that safety measures are integrated from the outset, minimizing the risk of operational failure or safety incidents. By conducting a hazard analysis early, designers and operators can mitigate risks and ensure the vessel meets safety regulations before it is commissioned for use.
Inspection and Maintenance Protocols
Regular inspection and maintenance of pressure vessels are crucial to ensuring their longevity and safe operation. Inspections help identify issues such as corrosion, leaks, or stress fractures that might develop over time due to pressure and environmental conditions. Maintenance protocols include a schedule for routine checks and immediate actions to correct any detected issues. Adhering to these strict protocols prevents larger malfunctions, extends the lifespan of the vessel, and ensures continued safe operation. Following detailed inspection schedules is especially important in industries like oil and gas, where vessels are exposed to harsh conditions.
Safety Valves and Release Mechanisms
Pressure vessels are equipped with safety valves and release mechanisms to prevent over-pressurization, which can lead to catastrophic failure. These components automatically release excess pressure when it exceeds a safe limit, ensuring the vessel operates within its designed capacity. Regular maintenance of these safety valves is vital to prevent malfunction, as a stuck or faulty valve can result in unsafe pressure levels building up. By incorporating these safety features, pressure vessels can maintain operational safety, even in cases where there are unexpected pressure surges.
Differentiating Pressure Vessel Types
Spherical vs. Cylindrical Vessels
Spherical pressure vessels offer a uniform stress distribution, which makes them highly efficient at managing internal pressure. Their round shape helps distribute the pressure evenly across the surface, minimizing stress points that could lead to material fatigue or failure. This makes spherical vessels ideal for storing gases under high pressure. However, due to their complex manufacturing requirements, they are typically more expensive than cylindrical vessels.
Cylindrical pressure vessels, on the other hand, are easier and more cost-effective to manufacture. They are commonly used for storing liquids and gases, and their elongated shape allows for versatility in various applications, such as pipelines and industrial storage systems. While cylindrical vessels may experience higher stress concentrations at the ends or along weld lines, their ease of construction and adaptability make them a popular choice in many industries.

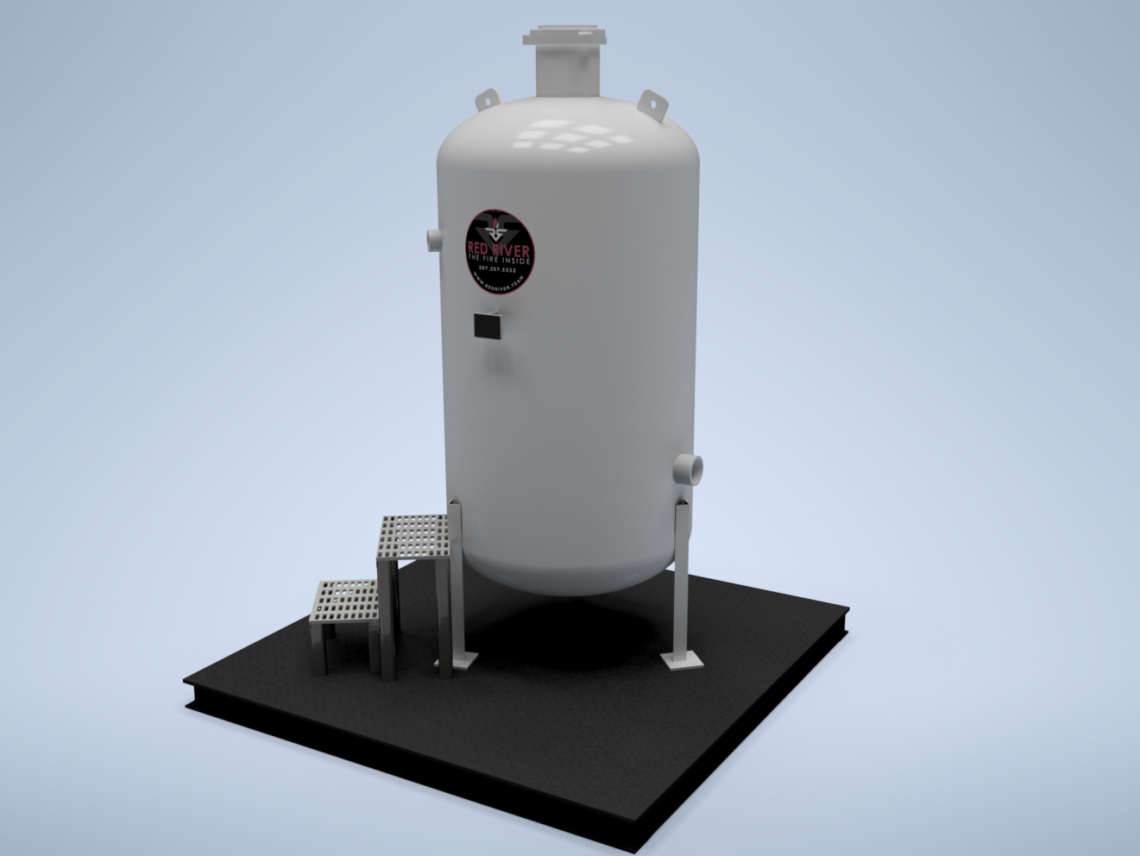

Horizontal vs. Vertical Orientation
The orientation of a pressure vessel can greatly impact its operational efficiency and the space it occupies. Horizontal vessels are often used for storing liquids or gases in large quantities, as their shape allows for a larger surface area and better fluid distribution. Horizontal vessels are common in applications such as fuel storage, water treatment, and chemical processing.
Vertical vessels, on the other hand, are often used in situations where space is limited, or where process efficiency benefits from a vertical setup. For instance, vertical vessels are frequently employed in distillation columns, reactors, or separators, where the vertical flow of materials is required. The orientation choice ultimately depends on the application, space constraints, and operational requirements.
Fixed Roof vs. Floating Roof Design
Pressure vessels may be equipped with different types of roofs depending on their application. Fixed roof designs are the most common for vessels handling pressurized gases or liquids. These roofs are permanently attached to the vessel and provide a sealed environment, essential for maintaining pressure within the system.
Floating roof designs are often used in storage tanks for liquids, particularly those that produce vapor, such as crude oil. These roofs adjust with the liquid level, minimizing the space for vapor accumulation and reducing the risk of vapor emissions. This design is highly effective in reducing product loss and preventing hazardous vapor from escaping into the environment, making it a preferred choice in industries that handle volatile substances.
Advanced Classification Techniques for Pressure Vessels
Computational Fluid Dynamics (CFD) Analysis
Computational Fluid Dynamics (CFD) is a cutting-edge technique that allows engineers to simulate and analyze fluid flow within pressure vessels. By applying mathematical models to predict how gases or liquids behave under various conditions, CFD provides valuable insights into the performance of pressure vessels. Engineers use CFD analysis to optimize the design of vessels for efficient operations, ensuring smooth fluid flow, minimizing turbulence, and reducing the risk of pressure drops. This analysis is particularly important in industries such as oil and gas, chemical processing, and power generation, where fluid dynamics play a crucial role in system efficiency and safety.
With the help of CFD, engineers can test different design configurations in a virtual environment, which saves both time and cost during the manufacturing process. It also allows for the fine-tuning of vessel geometry to maximize performance under operational conditions. Whether it’s ensuring even fluid distribution or preventing the formation of high-stress areas, CFD is a powerful tool in the design and evaluation of pressure vessels.
Finite Element Analysis (FEA)
Finite Element Analysis (FEA) is a vital tool used to evaluate the structural integrity of pressure vessels. This simulation technique divides the vessel into small, manageable elements, allowing engineers to assess how the vessel will respond to external pressures, forces, and thermal loads. By modeling different scenarios, FEA helps engineers predict areas where the vessel might experience stress concentrations, which could lead to potential failures.
FEA is often employed during the design phase to ensure that the pressure vessel can withstand extreme operating conditions, including high pressures and temperature fluctuations. It’s also used to analyze existing vessels, providing critical information about fatigue life, fracture risk, and deformation under stress. This analysis ensures that the vessel remains safe, reliable, and compliant with safety standards throughout its operational lifecycle.
Non-Destructive Testing (NDT) Methods
Non-Destructive Testing (NDT) methods are critical for inspecting pressure vessels without causing damage. These techniques, such as ultrasonic testing (UT), radiographic testing (RT), and magnetic particle testing (MT), allow engineers to detect flaws like cracks, weld defects, or corrosion that may not be visible to the naked eye. NDT methods help maintain the structural integrity of pressure vessels by identifying potential weaknesses before they result in failure.
NDT is widely used during the fabrication and maintenance of pressure vessels. These methods ensure the vessel remains safe to operate over time by allowing for regular inspections without compromising its usability. By utilizing NDT, manufacturers and operators can verify that a vessel complies with industry standards and regulations, enhancing its reliability and extending its service life. Regular NDT inspections are particularly crucial in industries where pressure vessels are exposed to harsh conditions or hazardous substances, ensuring operational safety and reducing the risk of catastrophic failure.
Red River LLC's Expertise in Pressure Vessel Classification
At Red River LLC, our team undergoes rigorous training and certification processes, ensuring they’re equipped with the latest knowledge in pressure vessel classification and safety standards.
Client Testimonials and Success Stories
Our track record speaks for itself. Numerous clients, from startups to international corporations, have lauded our commitment to excellence, innovative solutions, and unwavering dedication to safety.
Need a reliable partner?
Red River specializes in the design and manufacturing of pressure vessels. We also fabricate related items such as prefabricated spools and skid packages.
Reach Out to us today and experience the Red River difference. Where American Made and American Values come together, we care more.
FAQs on Pressure Vessel Classification and Manufacturing
1. What is the primary purpose of classifying pressure vessels?
Answer: The primary purpose of classifying pressure vessels is to ensure safety and efficiency in their operation. Classification helps in determining the design, material, and manufacturing standards that a vessel must adhere to based on its intended use, operating conditions, and potential hazards. By classifying them, manufacturers can ensure that the vessel can safely handle the pressures and temperatures it will be subjected to during its operational life.
2. How does the material composition affect the classification of a pressure vessel?
Answer: Material composition plays a crucial role in determining the vessel’s durability, resistance to corrosion, and ability to handle specific pressures and temperatures. Different materials, such as carbon steel, stainless steel, or alloy materials, have varying properties that make them suitable for particular applications. The chosen material will influence the vessel’s classification, especially concerning its safety margins and operational efficiency.
3. Are there international standards for pressure vessel classification, and how do they differ?
Answer: Yes, there are several international standards for pressure vessel classification. The most notable ones include the American Society of Mechanical Engineers (ASME) standards and the European Pressure Equipment Directive (PED). While both aim to ensure the safety and reliability of pressure vessels, they might have different criteria, testing methods, and documentation requirements. Manufacturers need to be aware of and comply with the standards relevant to the region where the vessel will be used.
4. How often should pressure vessels undergo inspection and maintenance?
Answer: The frequency of inspection and maintenance largely depends on the vessel’s type, its operational conditions, and the standards it adheres to. However, regular inspections are crucial to ensure the vessel’s safety and longevity. Typically, a comprehensive inspection is recommended at least once every few years, with periodic checks and maintenance conducted more frequently, depending on the vessel’s usage.
5. What are the potential risks if a pressure vessel is not correctly classified or maintained?
Answer: If a pressure vessel is not correctly classified or maintained, it poses significant risks, including the possibility of the vessel rupturing or exploding due to over-pressurization. Such incidents can lead to severe injuries, loss of life, and extensive property damage. Additionally, improper classification can result in operational inefficiencies, increased wear and tear, and a shorter vessel lifespan. It’s also worth noting that operating a misclassified or poorly maintained vessel can lead to legal implications and potential liabilities for the operators.
