Cylinder vs. Pressure Vessel: Understanding the Distinctions

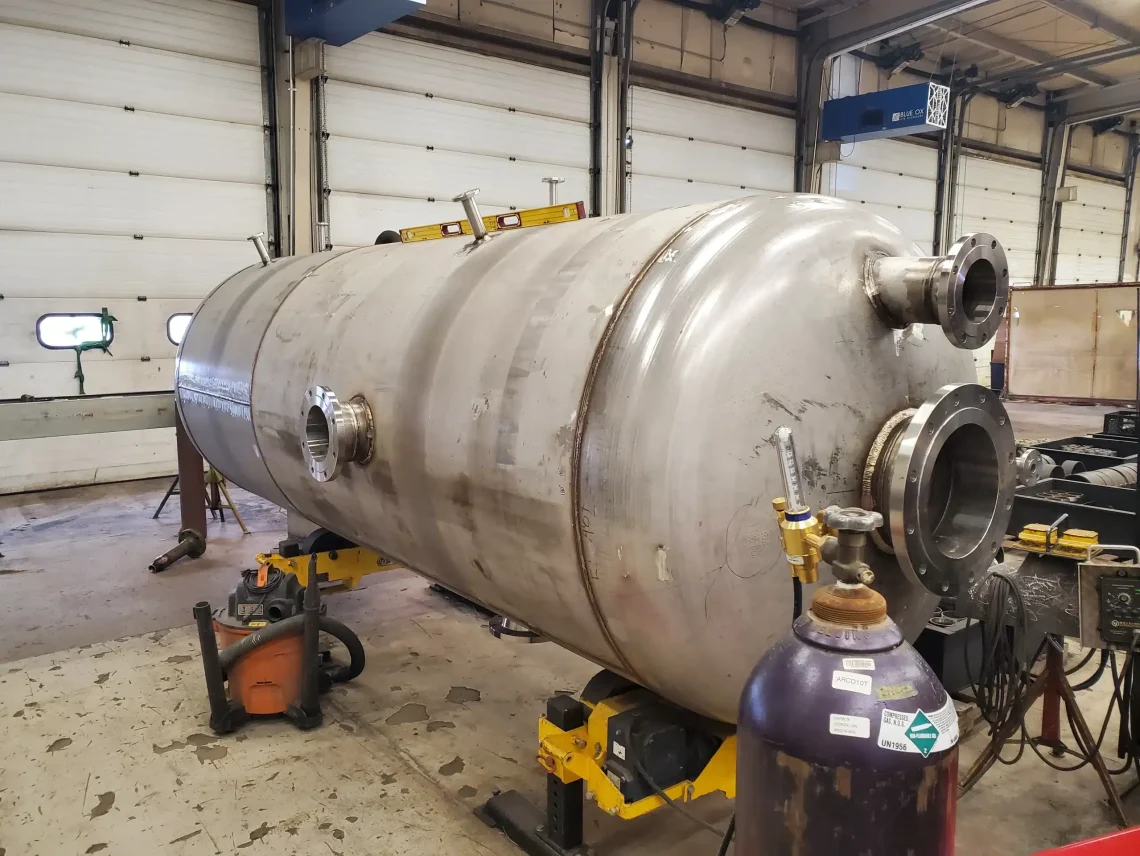

pressure vessel

Introduction to the difference between cylinder and pressure vessel

In the realm of equipment designed to contain pressurized substances, choosing between a cylinder and a pressure vessel can significantly impact your project costs, safety compliance, and operational efficiency. While both store materials under pressure, gas cylinders vs pressure vessels serve distinctly different purposes and applications.

Cylinders are specialized, portable pressure vessels designed primarily for gas storage and transport, typically operating at 150-3000 PSI. Industrial pressure vessels encompass a broader category of stationary containers used in manufacturing processes, often handling both gases and liquids at varying pressures up to 15,000 PSI or higher.

This comprehensive guide will help you understand when to specify a cylinder versus a pressure vessel, ensuring you select the right equipment for your specific application while meeting safety and regulatory requirements.

Fundamental Definitions

  • Pressure Vessel: A pressure vessel holds gases or liquids at a pressure significantly different from the ambient environment. Its shape, size, and design depend on its intended purpose.
  • Cylinder: A cylinder, in the context of pressurized containment, is a long, cylindrical container with a circular cross-section. It stores gases under pressure and serves as a subset of pressure vessels, designed for specific shape and purposes.

Core Design Characteristics & Specifications

Cylinder Design Specifications:

  • Shape: Elongated cylindrical design with length-to-diameter ratios typically 3:1 to 10:1
  • Capacity Range: 5 to 300 liters (1-80 gallons) for portable applications
  • Pressure Ratings: Standard working pressures from 150 PSI (medical oxygen) to 3000 PSI (industrial gases)
  • Wall Thickness: Typically 3-10mm depending on pressure rating and material
  • Standards: DOT (Department of Transportation) certified for transport, CGA (Compressed Gas Association) valve standards
  • Built-in Features: Integrated valve systems, pressure relief devices, protective caps

Pressure Vessel Design Specifications:

  • Shape Flexibility: Spherical, cylindrical, rectangular, or custom configurations
  • Capacity Range: 50 liters to 50,000+ gallons for industrial applications
  • Pressure Ratings: Low pressure (15 PSI) to high pressure (15,000+ PSI)
  • Wall Thickness: Calculated per ASME standards, typically 6-50mm+ for high-pressure applications
  • Standards: ASME Boiler & Pressure Vessel Code (BPVC), API standards for specific industries
  • Custom Features: Multiple nozzles, internal components, heating/cooling jackets

Typical Applications

  • Pressure Vessels: These are used across many industries, from petrochemicals to food processing. Examples include steam boilers, reactors in chemical processes, and storage tanks for liquids.
  • Cylinders: Cylinders are primarily used for storing and transporting compressed gases. Common examples include oxygen cylinders for medical use, propane cylinders for grilling, and acetylene cylinders for welding.

Materials and Construction

  • Pressure Vessel: Pressure vessels are built using materials that withstand high pressures and specific environmental conditions. Common materials include carbon steel, stainless steel, and composite materials. Carbon steel is popular for its affordability and strength, while stainless steel is preferred in environments requiring corrosion resistance. In advanced applications, composite materials like fiberglass-reinforced plastics (FRP) offer lightweight and high corrosion resistance.
  • Cylinder: Cylinders typically use high-strength metals such as steel or aluminum. Steel cylinders perform well in high-pressure applications, while aluminum cylinders are preferred for their lightweight properties and portability. These materials ensure durability and safety when containing compressed gases under high pressure. Cylinders are used in various environments, including industrial applications and personal scuba diving gear.

Safety and Regulatory Considerations

  • Pressure Vessel: Storing high-pressure substances involves significant risks, so pressure vessels must comply with strict safety and operational standards like the ASME Boiler and Pressure Vessel Code. These regulations cover design, manufacturing, testing, and maintenance to prevent incidents like ruptures or leaks. Safety mechanisms such as pressure relief valves help ensure operational safety, especially where human health and environmental impact are at risk.
  • Cylinder: Although cylinders adhere to similar pressure standards, their specifications vary based on use. Gas cylinders in industrial settings undergo different inspection and maintenance protocols than scuba tanks. Cylinders feature built-in safety valves to prevent over-pressurization and withstand various operating conditions, including temperature fluctuations and physical impacts.

Handling and Transportation

  • Pressure Vessel Handling: Transporting large stationary pressure vessels, especially in industries like chemical processing, requires specialized equipment. Cranes, forklifts, and heavy-duty trailers are often necessary for moving these vessels. To prevent damage during transport, they must be securely fastened. Once installed, vessels need precise positioning with secure connections and safety features to handle pressure fluctuations and avoid leaks or failures.
  • Cylinder Handling: Cylinders are more portable and easier to transport than large pressure vessels, but safety measures remain essential. For example, cylinders must stay upright to prevent gas leaks, and valves should be protected from damage. Transportation regulations typically require secure strapping to prevent cylinders from toppling over. Labeling may also be necessary to warn handlers about potential hazards, depending on the type of gas being transported.

Maintenance and Inspection

  • Pressure Vessel Maintenance: Regular inspections help maintain structural integrity and ensure safe operation. Inspections typically check for corrosion, leaks, material degradation, and mechanical wear. Common testing methods include visual inspections, ultrasonic testing, and hydrostatic pressure tests to assess the vessel’s durability over time. Maintenance may involve replacing gaskets, seals, or recalibrating safety valves to ensure proper operation.
  • Cylinder Maintenance: Cylinders require periodic visual and technical inspections to detect cracks, dents, or corrosion, particularly around the valve area. Hydrostatic testing at regular intervals ensures the cylinder walls can withstand rated pressures. Any worn or degraded valve components should be replaced to maintain safety.

Capacity and Storage

  • Pressure Vessel Capacity: Pressure vessels come in various sizes, tailored to meet specific operational needs. Some store small amounts of gas or liquid, while others hold thousands of gallons of pressurized substances. For instance, vessels in power plants or chemical processing facilities must accommodate large quantities of pressurized fluids or gases to ensure operational efficiency.
  • Cylinder Capacity: Cylinders typically have a defined volume, measured in liters or cubic feet, indicating the amount of gas they can store under pressure. The size often balances portability and gas volume requirements. Smaller cylinders are ideal for personal use, such as medical oxygen or scuba tanks, while larger cylinders support industrial operations where higher gas volumes are necessary.

Lifespan and Durability

  • Pressure Vessel Lifespan: Proper maintenance and adherence to design limits can extend the lifespan of a pressure vessel for several decades. Routine inspections and timely repairs help keep the vessel in optimal condition, preventing premature failure.
  • Cylinder Lifespan: Cylinders are durable but sensitive to environmental conditions, handling frequency, and maintenance practices. Regular inspections and timely refurbishments ensure a longer service life, reducing risks and operational downtime.

Environmental and Sustainability Aspects

  • Pressure Vessel: Modern pressure vessels incorporate sustainable design practices. Durable materials and recyclability contribute to energy savings and minimize environmental impact.
  • Cylinder: The push for eco-friendly cylinder manufacturing has increased, focusing on low-impact materials and responsible disposal practices. Refurbishing old cylinders also helps reduce waste while promoting sustainability.

A Comprehensive Look at Pressurized Equipment

The distinctions between pressure vessels and cylinders, while subtle, are essential to understand for those involved in industries where pressurized equipment is a staple. By appreciating their individual characteristics, applications, and safety considerations, one can ensure their optimal and safe use. As technology advances and industry needs evolve, both pressure vessels and cylinders will continue to play pivotal roles, with innovations enhancing their efficiency, safety, and sustainability.

Cost Comparison & Selection Criteria

Cost Analysis: Cylinder vs Pressure Vessel

Cylinder Costs:

  • Initial Investment: $100-$2,000 per unit (depending on size/pressure rating)
  • Recertification: $50-$200 every 5-12 years (DOT requirements)
  • Replacement Cycle: 15-30 years with proper maintenance
  • Best Value For: Gas storage under 300 liters, portable applications, standard pressures

Pressure Vessel Costs:

  • Initial Investment: $5,000-$500,000+ (custom engineering and fabrication)
  • Inspection Costs: $1,000-$10,000 annually (depending on complexity)
  • Service Life: 20-50+ years with proper maintenance
  • Best Value For: Large volume storage, process applications, custom pressure/temperature requirements

Need a reliable partner?

Red River specializes in the design and manufacturing of pressure vessels. We also fabricate related items such as prefabricated spools and skid packages.

Reach out to us today and experience the Red River difference. Where American-made products and American Values come together, we care more.

Frequently Asked Questions

What pressure rating do I need for my specific gas application?

Pressure requirements vary significantly by gas type and application:

  • Oxygen (medical): 2000 PSI cylinders, 150 PSI working pressure
  • Propane (industrial): 250 PSI maximum working pressure
  • Compressed air: 150-300 PSI for most pneumatic applications
  • Specialty gases: Can range from 150 PSI to 6000 PSI depending on the gas

How do I calculate the right size pressure vessel for my process?

Size calculation depends on several factors:

  • Flow rate requirements (GPM or CFM)
  • Residence time needed for your process
  • Safety factor (typically 10-25% above calculated volume)
  • Future expansion plans
  • Available space and structural support

Consider consulting with a pressure vessel engineer for vessels over 1000 gallons or pressures above 300 PSI.

What are the inspection and certification requirements?

For Cylinders:

  • DOT recertification every 5-12 years depending on type
  • Visual inspection before each fill
  • Hydrostatic testing required for recertification

For Pressure Vessels:

  • Annual external inspections
  • Internal inspections every 2-10 years (varies by jurisdiction)
  • National Board repairs for modifications
  • Authorized Inspector involvement for ASME vessels

Can a cylinder be considered a type of pressure vessel?

Technically, yes. A cylinder can be classified as a type of pressure vessel since it stores fluids at pressures different from the surrounding environment. However, in practice, “pressure vessel” generally refers to more complex industrial containers subject to stricter design and regulatory standards than simple cylinders.

What are the key factors to consider when selecting a cylinder or a pressure vessel for a specific application?

When selecting between a cylinder and a pressure vessel, key factors include the nature of the substance to be contained (gas or liquid, corrosive or non-corrosive), the operating pressure and temperature, the required volume, and the specific application environment (e.g., industrial, medical, or commercial). Additionally, regulatory compliance, safety standards, material compatibility, and potential impacts on the environment are crucial considerations. The choice will significantly depend on the balance between these factors and the specific requirements of the intended application.
