Exploring the Costs of Manufacturing a Pressure Vessel
Introduction to much does it cost to Manufacture a Pressure Vessel?
Pressure vessels are the unsung workhorses of many industries. They silently and efficiently perform their duties, ensuring that fluids, whether gaseous or liquid, are safely contained under varying pressures. From the towering distillation columns in petrochemical plants to the steam generators in power plants, these vessels are ubiquitous. However, the journey of creating a pressure vessel is intricate, and the costs associated with their manufacture can be influenced by a myriad of factors. This article aims to shed light on these determinants, offering insights into the economics of pressure vessel manufacturing.
Vessel Size and Capacity: More than Just Dimensions
At first glance, it might seem that the size and capacity of a vessel would be straightforward determinants of its cost. And to an extent, that’s true. A larger vessel, capable of holding more fluid, naturally requires more raw materials for its construction. But there’s more to it than just the material costs:
- Complexity of Design: As vessels increase in size, the design intricacies can also grow. Larger vessels might need additional reinforcements, specialized fittings, or even multiple compartments.
- Labor and Time: The fabrication of a larger vessel is not just about using more material. It also means more man-hours in design, welding, testing, and finishing.
- Transportation and Installation: Bigger vessels can pose logistical challenges. Specialized transportation might be needed, and the installation process can be more complex and time-consuming.
Material Selection: Balancing Cost with Functionality
The material from which a pressure vessel is made isn’t just a matter of picking the cheapest option available. It’s a careful balance between cost, functionality, and longevity:
- Functionality: The primary consideration is the vessel’s function. Will it hold corrosive chemicals? Does it need to withstand high temperatures? Each of these questions can influence the material choice.
- Longevity and Maintenance: Some materials, while more expensive upfront, might offer longer lifespans or reduced maintenance needs. Over the vessel’s life, this can translate to cost savings.
- Availability and Supply Chain: The cost of materials isn’t static. It can vary based on global supply chains, availability, and even geopolitical factors. For instance, a sudden surge in steel prices can influence the cost of manufacturing a carbon steel vessel.
Common materials like carbon steel are often chosen for their balance of cost and durability. Stainless steel, while more expensive, offers enhanced corrosion resistance, making it ideal for certain applications. Specialized alloys, though pricier, might be the material of choice for extreme conditions or specific chemical compatibilities.
Design Complexity
The complexity of the pressure vessel’s design plays a significant role in cost. Vessels with intricate shapes, multiple compartments, or complex internal structures may require more engineering expertise and fabrication time, leading to higher manufacturing costs.
Regulatory Compliance
Pressure vessels must comply with industry-specific codes and standards, such as the ASME Boiler and Pressure Vessel Code. Meeting these regulations may necessitate additional design modifications, inspections, and documentation, which can add to the overall manufacturing cost.

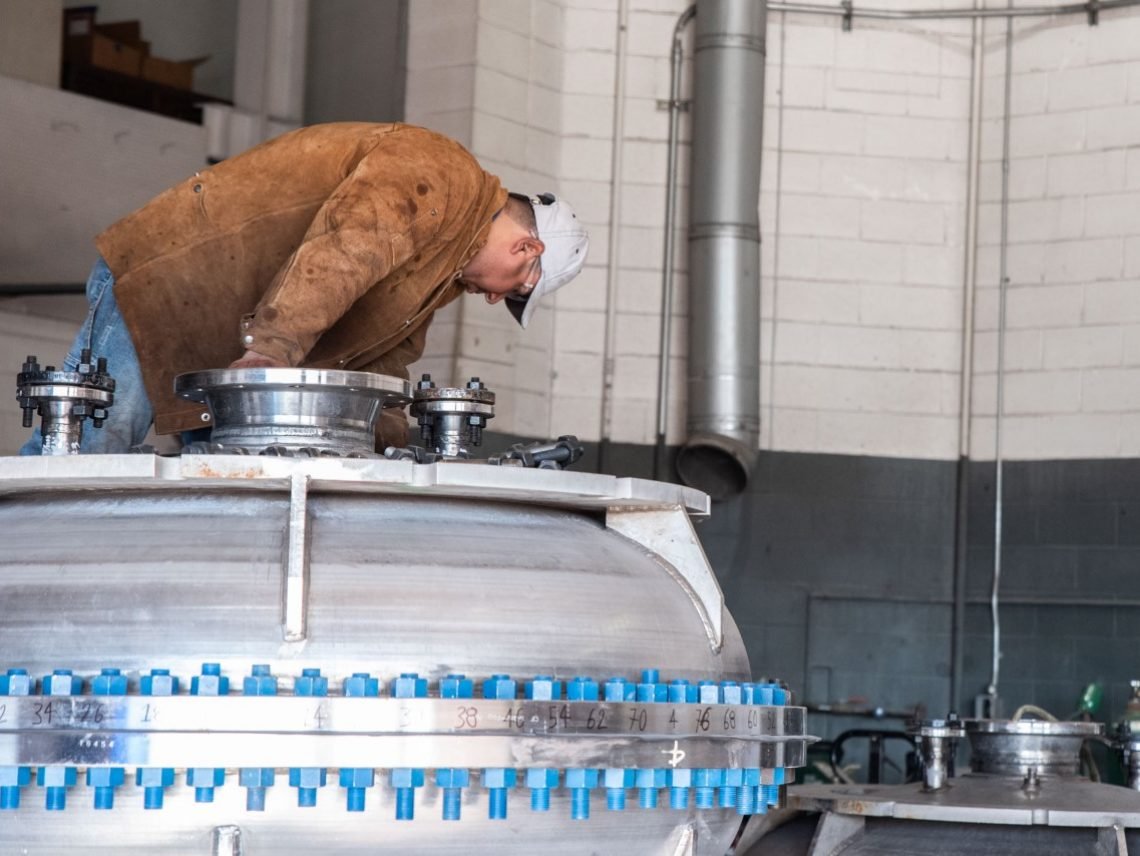

Welding Inspections: The Bonds that Hold
Welding is a critical aspect of pressure vessel fabrication. The integrity of welds determines the vessel’s ability to contain pressure without leakage or failure:
- Visual Inspections: Before any advanced tests, a simple visual inspection can identify obvious defects or inconsistencies in the weld.
- Non-Destructive Testing (NDT): Techniques like ultrasonic testing, radiographic testing, and magnetic particle inspection are employed to detect any internal or surface defects in the welds without damaging them.
Quality Control: The Pillar of Pressure Vessel Manufacturing
In the world of pressure vessel manufacturing, quality control isn’t just a buzzword; it’s the bedrock upon which the safety and reliability of these critical components rest. Given the pivotal role pressure vessels play in various industries, any compromise on quality can have far-reaching consequences, from operational disruptions to potential safety hazards. As such, the quality control process, while adding to the manufacturing cost, is non-negotiable and is seen as an investment in long-term safety and efficiency.
Additional Components
Pressure vessels often require additional components such as nozzles, fittings, safety devices, and insulation. The cost of these components and their installation should be factored into the overall manufacturing cost.
Labor and Expertise
The skill level of the workforce involved in the manufacturing process affects costs. Skilled welders, engineers, and quality control personnel are essential but can command higher wages, contributing to manufacturing expenses.
Location
The geographical location of the manufacturing facility can impact costs due to differences in labor rates, overhead expenses, and local regulations. Manufacturing in regions with higher living costs may result in increased expenses.
Testing and Certification
Pressure vessels must undergo rigorous testing and certification processes to ensure their safety and compliance with industry standards. These testing procedures, including hydrostatic testing and pressure relief device calibration, can add to the manufacturing cost.
Shipping and Transportation
Another cost consideration is the transportation of the finished pressure vessel to its intended location. Large and heavy vessels may require specialized transport methods, which can add to the overall cost. Additionally, international shipping may involve customs duties and import/export fees.
Lead Time and Project Schedule
The time required to manufacture a pressure vessel can impact costs, especially when project schedules are tight. Rush orders or expedited fabrication may incur additional expenses due to overtime labor and expedited material procurement.
Material Testing: Ensuring the Right Building Blocks
Before any fabrication begins, the raw materials destined to become part of the pressure vessel undergo rigorous testing. This ensures that they meet the required specifications and are free from defects:
- Mechanical Testing: This evaluates the material’s strength, ductility, and toughness. Tests like tensile strength, impact resistance, and elongation assessments are conducted to ensure the material can withstand the pressures it will face.
- Chemical Analysis: It’s crucial to know the exact chemical composition of the materials. Even minute variations in alloying elements can significantly affect performance. Through techniques like spectroscopy, the material’s chemistry is verified against set standards.
Inspections and Testing
Pressure vessels undergo various inspections and testing throughout the manufacturing process to ensure quality and compliance. This includes visual inspections, dimensional checks, and the documentation of inspection records. These processes, while essential, add to the overall cost.
Customization and Special Features
Pressure vessels often require customization to meet specific project requirements. Incorporating special features such as agitators, heat exchangers, or unique fittings can increase manufacturing costs due to engineering design and fabrication complexity.
Batch Size and Volume
Manufacturing multiple pressure vessels in a single batch can lead to cost savings per unit due to economies of scale. Smaller batch sizes may result in higher manufacturing costs per vessel.
Project Management and Overhead
Project management and overhead costs, including administrative expenses, facility maintenance, and utilities, are allocated to the cost of manufacturing pressure vessels and should be considered in cost estimation.
Market Conditions
Market conditions can influence the cost of materials and labor. Fluctuations in the prices of steel, specialty alloys, and skilled labor can impact the overall manufacturing cost of pressure vessels.
Risk Mitigation
Manufacturers may factor in a margin for risk mitigation, considering potential unforeseen issues or challenges that could arise during the fabrication process.
In conclusion, the cost of manufacturing a pressure vessel can vary significantly based on factors such as size, material selection, design complexity, regulatory compliance, quality control measures, and location. It’s essential for manufacturers and project planners to carefully consider these factors and work closely with experienced engineers and fabricators to arrive at a cost estimate that aligns with project requirements and safety standards. Investing in the quality and safety of pressure vessels is paramount to ensure their long-term reliability and performance in industrial applications.
Need a reliable partner?
FAQ: Manufacturing Costs of Pressure Vessels
What factors influence the cost of manufacturing a pressure vessel?
The cost of manufacturing a pressure vessel is influenced by several key factors. Material choice is a primary factor, as different metals like stainless steel, carbon steel, or alloys have varying prices. The size and complexity of the vessel also play a significant role; larger vessels with intricate designs require more materials and labor. Additionally, the pressure rating and the type of welding or fabrication methods used can impact the cost. Regulatory compliance and testing to ensure safety standards can also add to the overall expense.
How does the choice of material affect the manufacturing cost of a pressure vessel?
Material selection is crucial in determining the cost. Common materials like carbon steel are generally more affordable but might not be suitable for corrosive environments. In contrast, stainless steel and high-grade alloys, which offer better corrosion resistance and strength, are more expensive. The material cost not only affects the initial expenditure but also influences the vessel’s durability and maintenance needs, impacting the long-term cost.
Can the design and complexity of a pressure vessel significantly change the manufacturing cost?
Absolutely. The design complexity of a pressure vessel directly affects manufacturing costs. A vessel with a simple cylindrical shape is less expensive to produce compared to one with a complex geometry, multiple chambers, or additional features like jackets or internal coils. Complex designs require more engineering time, precision in fabrication, and often more expensive materials, all contributing to higher costs.
What role does pressure rating play in the cost of manufacturing a pressure vessel?
The pressure rating of a vessel is a critical factor in cost determination. Higher pressure ratings necessitate thicker walls and more robust construction to withstand the internal pressure, which increases material requirements and labor. Additionally, vessels with high-pressure ratings often require more extensive testing and quality assurance processes to ensure safety, further adding to the cost.
How do safety standards and regulatory compliance impact the manufacturing cost?
Adhering to safety standards and regulatory compliance is non-negotiable in pressure vessel manufacturing and significantly influences the cost. Compliance with standards like the ASME Boiler and Pressure Vessel Code in the U.S., or similar international standards, requires rigorous testing, quality control, and documentation. This process ensures the vessel’s safety and reliability but also adds to the manufacturing time and cost due to the additional steps and quality checks involved.
